There are about three main types of telescope.
The Refractor.
The Reflector or Newtonian.
And the Cassegrain or catadioptric telescope.
The refractor telescope is what most people think of when you mention the word telescope. It's a hollow tube with a lens at one end and an eyepiece at the other. And basically thats what a refractor is. The lens causes the light rays to bend or refract to a point near the eyepiece. At this point an image is formed which is magnified by the eyepiece.
Sounds simple doesn't it? Why can't I just get a bit of drain pipe, borrow Grans magnifying glass and stick that at one end, then get an eyepiece and stick it in the other? Well you could, as long as Granny knows!
In fact some years back I tried to build my first telescope like that. Sadly it didn't work very well.

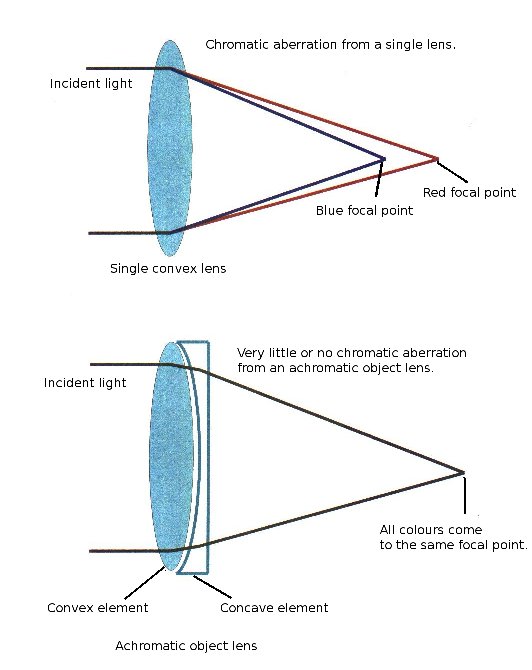

This is because a single lens works a bit like a prism. I'm sure you remember, from school, seeing white light being split into its separate colours by a prism. The single lens brings the different colours of light to a focus at slightly different points. Blue light closest to the lens, red light further away. It's acting like a lens and a prism. This is most undesirable for a telescope. It causes, what is technically known as, "chromatic aberration" This means that if we look at say the Moon, we would see different coloured fringes around the edges of the Moon.
To overcome this problem we can either make the telescope very long - a very very long focal length lens suffers only a tiny amount of chromatic aberration. But this would be quite impractical.

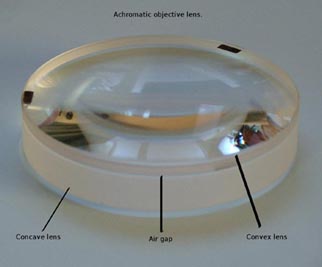

So modern refracting telescopes use a compound lens at the front of the tube, which consists of at least two lenses or elements, sometimes more. These elements when put together are known as the telescope's "objective lens". The simplest uses just two elements. The first lens or element is of the convex type (same as Grannys magnifying glass). This is followed very closely by a concave lens. Often the two lenses are bonded together, with a small air gap, so that they appear to be one lens. The idea is that both elements cause the undesirable effect, chromatic aberration, but in opposition to each other. And opposites cancel out (unlike the song!). This type of objective lens with just two elements is called an "achromatic lens".
So the two lenses or elements, being of opposite types cancel out each other's undesired effect. This is how modern refractors overcome chromatic aberration or false colours. Some refractor designs use three elements to make up the objective and these are known as "apochromatic lenses"
Some eyepieces are constructed in a similar way. But I wont go into eyepieces too much here, they deserve an article to themselves.

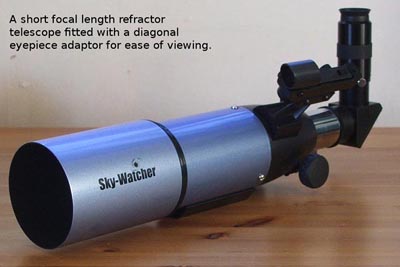

To recap on the refractor then. A refracting telescope gathers light through the compound lens or objective lens. This lens brings the light rays to a point known as the focal point. Just beyond this point an image, which is upside down, is produced. The eyepiece is placed at this point and magnifies the image before it enters your eye. So that the telescope can be focused, it is necessary to move the eyepiece back and forth slightly. The telescope will have a device, called the focuser. This is normally a type of tube mounted on a rack and pinion, which holds the eyepiece and can move it back and forth.
The binoculars work in just the same way, except for one extra component. This component is a prism that folds the light rays around inside the binocular tube. This has the effect of making the binocular tube appear longer to the light that is physically and this gives the binoculars the magnification that would otherwise require a longer tube. It also gives the binocular tube that kink in the middle.
